EPDM/NBR (nitrile butadiene rubber) foam is known for its good resistance to oil, NBR closed-cell foam shows much higher and better resistance than open-cell foam, with all kinds of oil and grease, especially in contact with It resists heavy oils well.
Due to their high flexibility, EPDM/NBR rubber foams exhibit high resistance to tearing, stretching, and wear. So, it is used as special parts in automotive equipment, aerospace, and shipbuilding industries. On the other hand, the high resistance of this foam against direct heat has made it an ideal product for thermal insulation, and it is also very useful in industries where it is possible to contact foam with direct heat.
Click on the link to download the technical information of the EPDM/NBR Foam.
| Product code | Sheet dimensions (cm) | Sheet layer dimensions (cm) | Foam roll dimensions | Foam hardness | Foam density (kg/cm3) | Temperature range | Physical characteristics | Colors |
|---|---|---|---|---|---|---|---|---|
| EDB715 | 200*100*35 | 200*100 | 50m*150cm 50m*120cm 100m*150cm 100m*120cm | 25-30 / Shore C | 200±30 | 40- to100°C | EPDM/NBR | Black |
| Product Code | Embossing | Thermal laminate | Towel | Punch | Thermoforming | Class welding | Die Cut | CNC | Glitter | Gum |
|---|---|---|---|---|---|---|---|---|---|---|
| EDB715 | * | * | * | * | * | * | * | * |
EPDM/NBR foam is closed-cell, one of the key features of closed-cell materials is the unique structure of the material, which prevents the growth of bacteria and molds.
Due to the characteristics of EPDM/NBR foam, it can be used in various industries, but in this section, the most applications of foam in various industries are mentioned.
EPDM/NBR foam is a specialized, closed-cell foam that combines the properties of two elastomeric foams, Ethylene Propylene Diene Monomer (EPDM) and Nitrile Butadiene Rubber (NBR). This unique combination results in a foam with high resistance to both oil and harsh environmental conditions.
This foam has a range of superior properties, including:
While other foams have their benefits, EPDM/NBR foam is engineered to have superior resistance to oil, heat, and UV radiation. Its closed-cell structure also provides exceptional sealing capabilities against moisture and air, making it ideal for demanding industrial applications where other foams might fail.
Due to its specialized properties, this foam is widely used in industries such as:

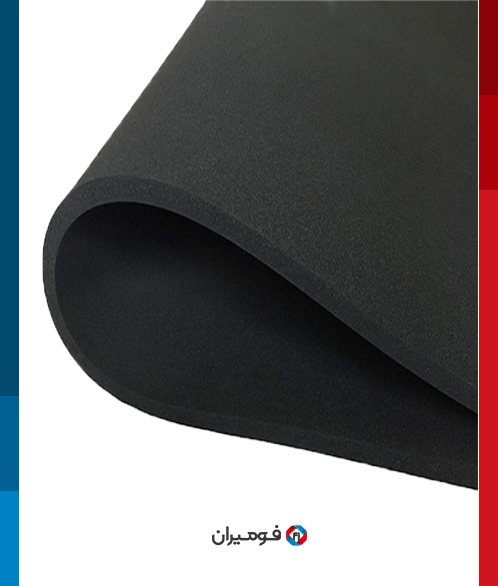

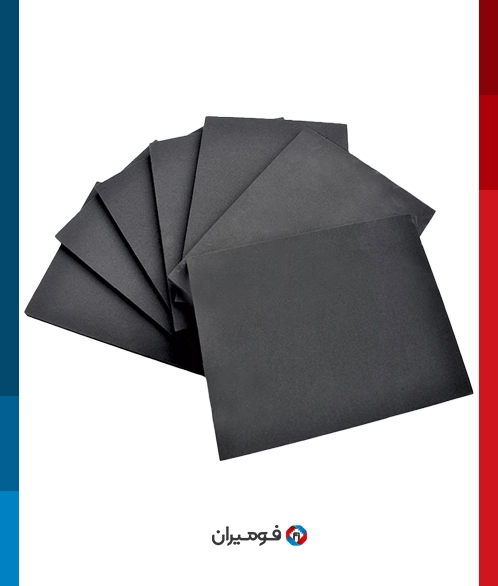

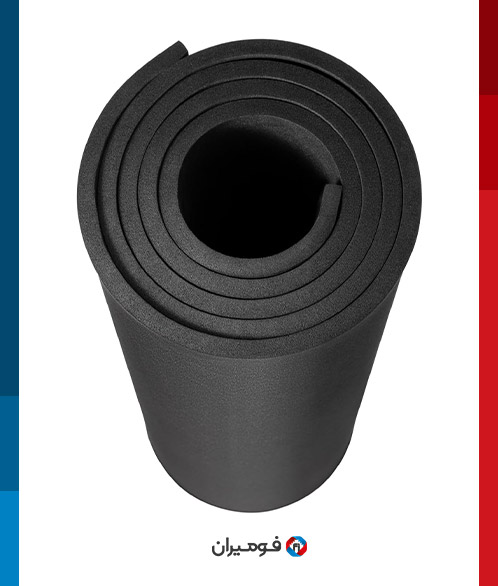

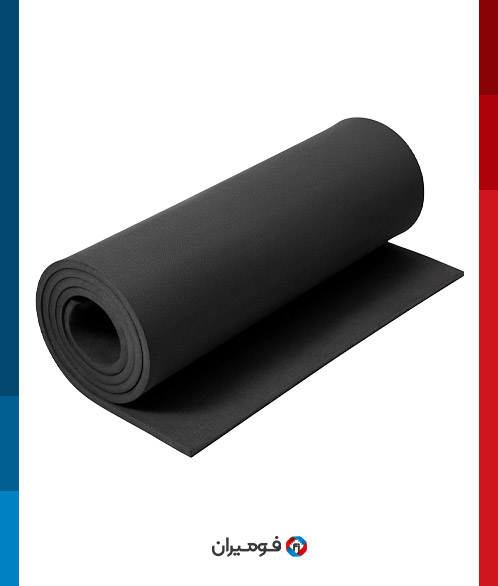

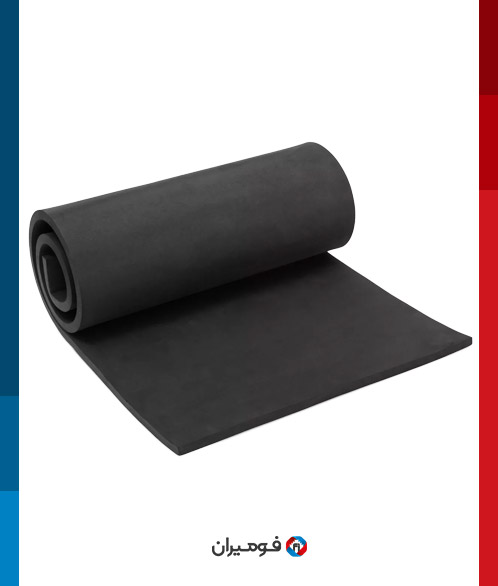

Foamiran provides EPDM/NBR foam in various forms, including sheets, rolls, and layers with custom dimensions and thicknesses. We also offer specialized industrial services for this foam, such as CNC cutting, die-cutting, punching, lamination, and the application of adhesive backing, to produce specific parts like custom gaskets or protective molds.
Yes. The closed-cell structure of EPDM/NBR foam is a non-porous and non-absorbent surface, which prevents the growth of bacteria, mold, and fungus. This makes it an ideal material for applications where hygiene is a priority.
To place a wholesale order for EPDM/NBR foam or request custom services, you can visit the Foamiran website and fill out the product order form. Alternatively, you can contact the company’s sales experts directly. Our experts are ready to provide specialized consultation and register your order to ensure you receive the best solution for your needs.
